Jkongmotor High Torque 12Nm Nema34 Closed Loop linear stepper motor
for sex machine With Encoder And Driver
Product Description:
Motor Features:
1. Low heat (static, the current is almost zero, no heat).
2.Smoothing (based on the feedback vector space vector current
control algorithm and vector smoothing filtering technology, the
traditional stepping motor troubled low frequency resonance has a
very good resistance).
3. Applicable industry: dispenser / woodworking machine / welding
machine / screw machine / zipper machine / winding machine
/placement machine / packaging machine / engraving machine / laser
machine / LED / electronic equipment.
4. Large torque output in some cases can simplify the complexity of
the machine.
At the core, closed loop stepper is a control technique that adds
an encoder to the motor so that it can be driven like a servo
rather than via the traditional open-loop approach. The fact that
an encoder is needed means that truly low cost applications will
not be good candidates for closed loop stepper.
JKONGMOTOR stepping motor is a motor that converts electrical pulse
signals into corresponding angular displacements or linear
displacements. This small stepper motor can be widely used in
various fields, such as a 3D printer, stage lighting, laser
engraving, textile machinery, medical equipment, automation
equipment, etc.
Characteristics of Jkongmotor Stepper Motor
1. The magnetic steel is high grade,we usually use the SH level
type.
2. The rotor is be coated,reduce burrs,working smoothly,less noise.
We test the stepper motor parts step by step.
3. Stator is be test and rotor is be test before assemble.
4. After we assemble the stepper motor, we will do one more test
for it, to make sure the quality is good.
Jkongmotor has a wide range of micro motor production lines in the
industry, including Stepper Motor, DC Servo Motor, AC Motor,
Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc.
Through technical innovation and customization, we help you create
outstanding application systems and provide flexible solutions for
various industrial automation situations.
Nema 17 Closed Loop Stepper Motor:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Motor |
| ( °) | (L)mm | A | Ω | mH | kg.cm | No. | g.cm | g.cm2 | Kg |
| JK42HS34-1334BED-01 | 1.8 | 34 | 1.33 | 2.1 | 2.5 | 2.6 | 4 | 120 | 34 | 0.22 |
| JK42HS40-1704BED-02 | 1.8 | 40 | 1.7 | 1.5 | 2.3 | 4.2 | 4 | 150 | 54 | 0.28 |
| JK42HS48-1684BED-02 | 1.8 | 48 | 1.68 | 1.65 | 2.8 | 5 | 4 | 260 | 68 | 0.38 |
| JK42HS60-1704BF-ED-01 | 1.8 | 60 | 1.7 | 3 | 6.2 | 7.3 | 4 | 280 | 102 | 0.55 |

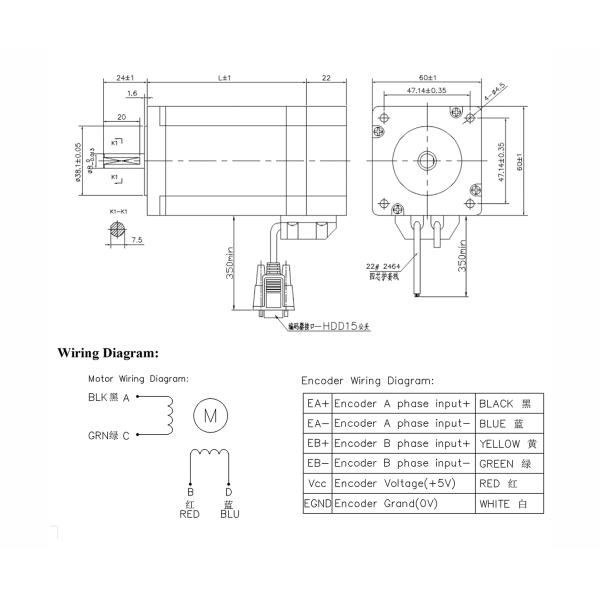

Drawing:
Product Images:
Nema 23 Closed Loop Stepper Motor:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | g.cm | g.cm2 | Kg |
| JK57HSN12 | 1.8 | 56 | 4.2 | 0.4 | 1.5 | 1.2 | 4 | 350 | 280 | 0.98 |
| JK57HSN21 | 1.8 | 76 | 4.2 | 0.6 | 2 | 2.1 | 4 | 600 | 440 | 1.1 |
| JK57HSN30 | 1.8 | 112 | 4.2 | 0.9 | 4 | 3 | 4 | 1200 | 800 | 1.4 |
Drawing:
Product Images:
Suitable Driver JK-HSD 57:
Nema 24 Closed Loop Stepper Motor:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm2 | Kg |
| JK60HSN30 | 1.8 | 88 | 4 | 0.65 | 2.4 | 3 | 4 | 1000 | 840 | 1.4 |
| JK60HSN40 | 1.8 | 100 | 4 | 0.7 | 3 | 4 | 4 | 1100 | 980 | 2 |
Drawing:
Product Images:
Suitable Driver JK-HSD 57:
Nema 34 Closed Loop Stepper Motor:
| Model No. | Step Angle | Motor Length | Current | Resistance | Inductance | Holding Torque | # of Leads | Detent Torque | Rotor Inertia | Mass |
| ( °) | (L)mm | A | Ω | mH | N.m | No. | Kg.cm | g.cm2 | Kg |
| JK86HSN45 | 1.8 | 78 | 6 | 0.27 | 2 | 4.6 | 4 | 1.2 | 1400 | 2.3 |
| JK86HSN65 | 1.8 | 100 | 6 | 0.27 | 2.2 | 6.8 | 4 | 1.9 | 2200 | 3 |
| JK86HSN85 | 1.8 | 115 | 6 | 0.36 | 3.8 | 8.5 | 4 | 2.4 | 2700 | 4.3 |
| JK86HSN120 | 1.8 | 155 | 6 | 0.44 | 3.8 | 12 | 4 | 3.6 | 4000 | 5.9 |
Drawing:
Product Images:
Suitable Driver JK-HSD 86:
Hybrid Stepping Motor Customized:
Stepper Motor Shaft Customized:
