1.8 degree 2.8A 21kg.cm Bipolar Unipolar Nema 24 Linear Ball Screw Stepper Motor

The NEMA 24 stepper motor linear actuator features easy integration into your applications, a high level of precision, safer performance, and an economical cost. The NEMA 24 stepper motor linear actuator has four form factors available – captive, non-captive external, and electric cylinder linear versions. Let our applications engineering team help you determine whether the NEMA 24 stepper motor linear actuator or one of our other linear actuator solutions is best suited to meet your application’s needs.

High Torque Motor Electrical Specification:

Model No.	mode of connection	Motor Length	Current /Phase	Resistance /Phase	Inductance /Phase	Holding Torque	# of Leads	Detent Torque	Rotor Inertia
		(L)mm	A	Ω	mH	N.m	No.	g.cm	g.cm2
JK60HS56-2008	Unipolar	56	2	1.8	3.	1.17	8	700	300
	Parallel		2.8	0.9	3.6	1.65
	Series		1.4	3.6	14.4	1.65
JK60HS67-2008	Unipolar	67	2	2.4	4.6	1.5	8	900	570
	Parallel		2.8	1.2	4.6	2.1
	Series		1.4	4.8	18.4	2.1
JK60HS88-2008	Unipolar	88	2	3	6.8	2.2	8	1000	840
	Parallel		2.8	1.5	6.8	3.1
	Series		1.4	6	27.2	3.1
JK60HS100-2008	Unipolar	100	2	3.2	6.4	2.8	8	1100	980
	Parallel		2.8	1.6	6.4	4.0
	Series		1.4	6.4	25.6	4.0
JK60HS111-2008	Unipolar	111	2.0	4.4	8.3	3.2	8	1200	1120
	Parallel		2.8	2.2	8.3	4.5
	Series		1.4	8.8	33.2	4.5

Screw rod specifications:

Unbipolar, Bipolar Stepper Motor Wiring Diagram:

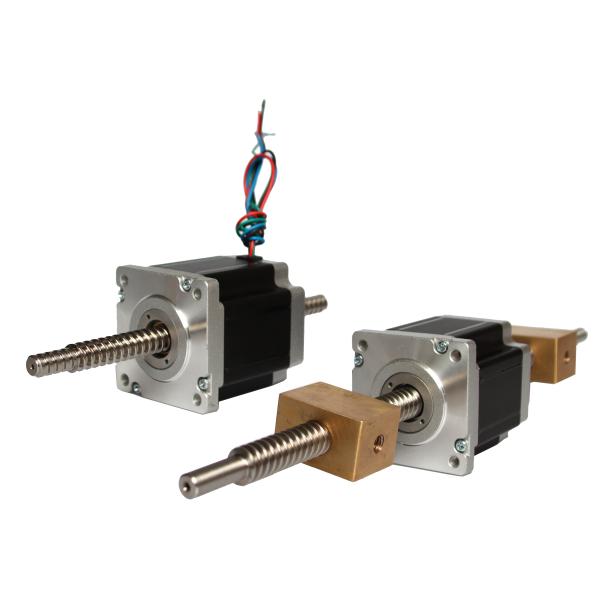

Nema 24 Linear Ball Screw Stepper Motor pictures:

Stepper Motor Applications:

• As the stepper motor are digitally controlled using an input pulse, they are suitable for use with computer controlled systems.
• They are used in numeric control of machine tools.
• Used in tape drives, floppy disc drives, printers and electric watches.
• The stepper motor also use in X-Y plotter and robotics.
• It has wide application in textile industries and integrated circuit fabrications.
• The other applications of the Stepper Motor are in spacecrafts launched for scientific explorations of the planets etc.
• These motors also find a variety of commercial, medical and military applications and also used in the production of science fiction movies.
• Stepper motors of microwatts are used in the wrist watches.
• In the machine tool, the stepper motors with ratings of several tens of kilowatts is used.
