Jkongmotor 42mm 57mm 86mm Integrated Stepper Motor Pulse-type
Open-loop/ Closed-loop Stepper Motor Together with Driver
Product Description:
A motor with a controller or a driver, and an encoder, is an
integrated motor. Integrated motors save wiring between the motor,
controller and the control cabinet. By minimizing the machine
complexity and installation efforts, the overall system cost is
reduced
Characteristics of Integrated Dc Servo Motor
1. Compact: Integrated design of integrated drive motor Easy
installation, small footprint, and simple wiring.
2. Multiple motion control modes: Supports the CiA402 standard
protocol, including Relative position mode, absolute position mode,
speed Mode, torque mode, and origin regression mode.
3. low-power consumption: Adopting low internal resistance MOS to
ensure motor performance Excellent torque utilization while reducing motor power consumption And heat generation, effectively
extending the service life of
the motor.
4. control mode: Supports pulse/RS485/CANopen.
5. Multi segment position speed function: With multi segment
position function and multi segment speed function.
6. Safe and reliable: Driver built-in in place and alarm output
signal Convenient for upper computer detection and control built-in
Multiple alarm functions such as over differential, over
undervoltage, and over temperature Can ensure the safe operation of
processing equipment.
Jkongmotor has a wide range of micro motor production lines in the
industry, including Stepper Motor, DC Servo Motor, AC Motor,
Brushless Motor, Planetary Gear Motor, Planetary Gearbox etc.
Through technical innovation and customization, we help you create
outstanding application systems and provide flexible solutions for
various industrial automation situations.
Features:
1. Adopting a new 32-bit M4+core with 120M or 240M main frequency
2. Stable torque characteristics from low to high speeds, with high
speed and precision
3. Equipped with brake resistor interface to prevent damage to the
electromechanical braking system
4. Wide speed range, low temperature rise, and high efficiency
5. Integrated motor and drive, compact size, simple wiring, and
drive Good compatibility with the motor
6. Equipped with overcurrent, overvoltage, over temperature, and
over differential protection functions
7. Configure a 17bit single turn absolute encoderCommunication method:
1. Pulse type
2. RS485 MOdbus RTU network type
3. CANopen network type
Protection level:
Waterproof type: IP30, IP54, IP65, optional
Usage:
Medical equipment, logistics transportation, industrial automation,
textile machinery, laser, drawing, traditional Chinese
medicine ingredient industry, etc

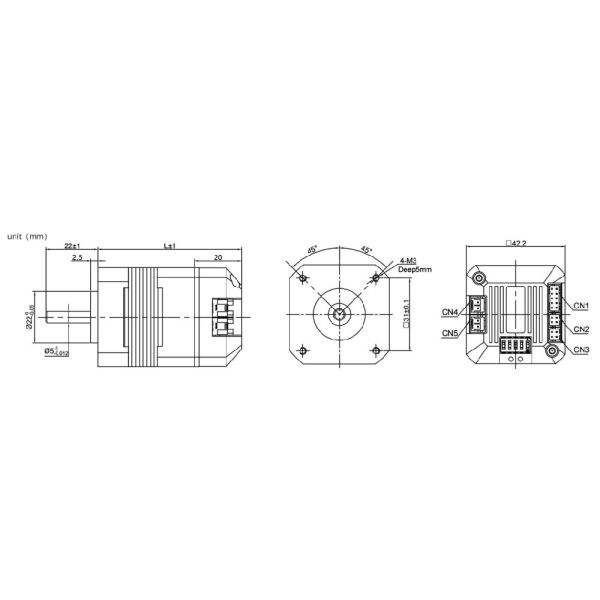

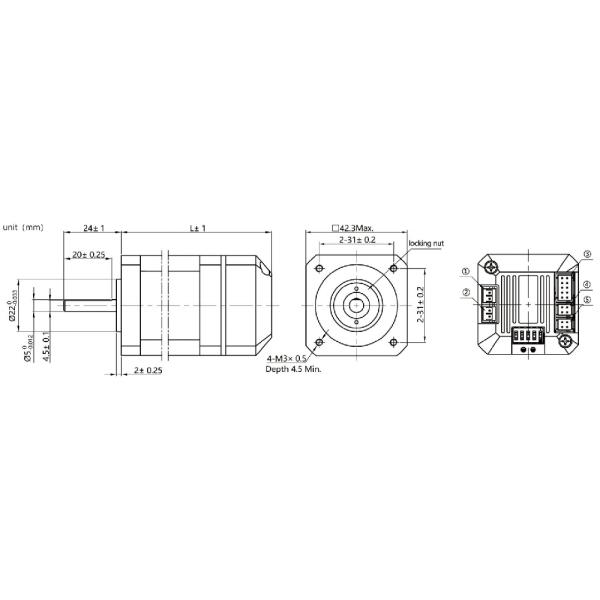

42mm Integrated Stepper Servo Motor:

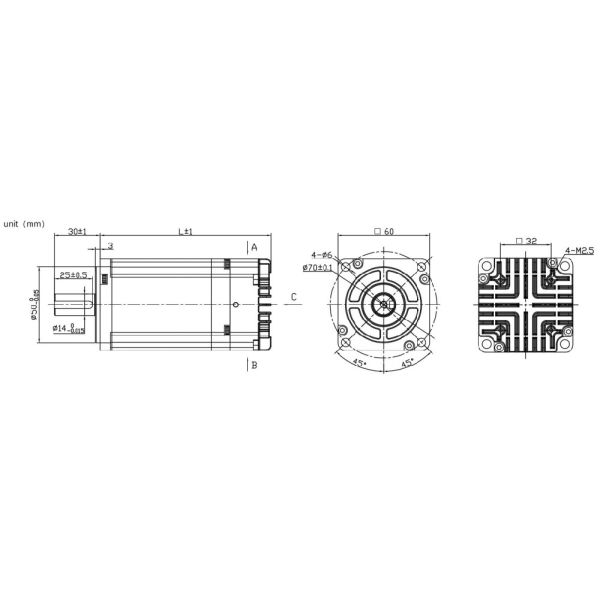

57mm Integrated Stepper Servo Motor:
| Model | step Angle (1.8°) | phase Current (A) | Rated Resistance (Ω) | Rated Torque (N.m) | Total body height L (mm) | Encoder | Control method (optional) |
| JKISS57-P01A | 1.8 | 2 | 1.4 | 0.55 | 65 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P02A | 1.8 | 2.8 | 0.9 | 1.2 | 80 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P03A | 1.8 | 2.8 | 1.1 | 1.89 | 100 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P04A | 1.8 | 3 | 1.2 | 2.2 | 106 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P05A | 1.8 | 4.2 | 0.75 | 2.8 | 124 | 1000ppr/17bit | pulse | RS485 | CANopen |
| JKISS57-P06A | 1.8 | 4.2 | 0.9 | 3 | 136 | 1000ppr/17bit | pulse | RS485 | CANopen |

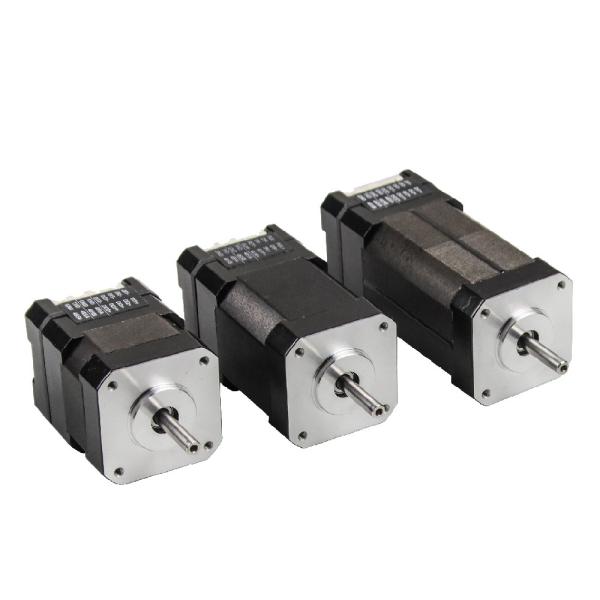

42mm Integrated Dc Servo Motor:
Integrated Servo motor customized:
